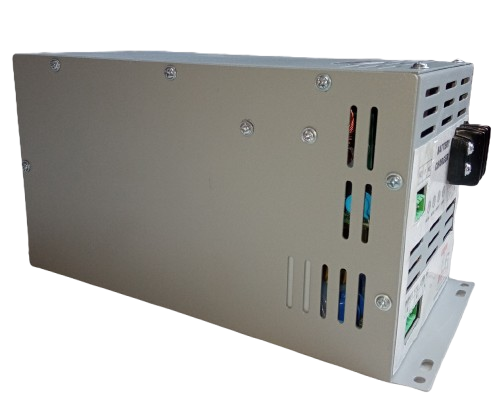

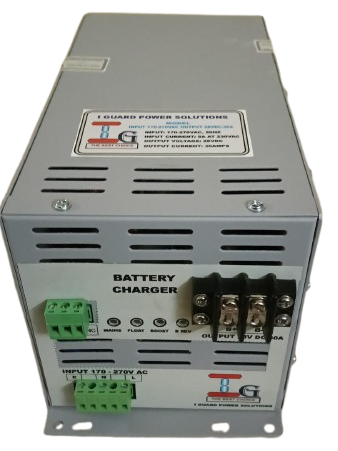

Battery Charger - I Guard Power Solutions

Technical Specification

PARAMETER	SPECIFICATION VALUE
INPUT VOLTAGE RANGE	170-270VAC
FREQUENCY	50Hz
EFFECIENCY	85 % TYPICAL
OUTPUT VOLTAGE	FLOAT MODE 30.8 V TO 31.5VDC, BOOST MODE 32.66 V TO 33.13 VDC
OUTPUT CURRENT	FLOAT MODE 0 TO 6 AMPS, BOOST MODE 6 TO 30 AMPS
RIPPLE	LESS THAN 200 MV P-P
OPERATING TEMPERATURE	-10 TO 55 DEG C
COOLING	FORCED AIR
RATED POWER	860 WATTS
PROTECTIONS	I/P UNDERVOLTAGE SHUTDOWN 150VAC, I/P OVERVOLTAGE SHUTDOWN 280 VAC, SHORT CURCUIT AND OVERLOAD, BATTERY REVERSE, O/P OVERVOLTAGE.
INDICATIONS	MAINS ON GREEN, FLOAT GREEN, BOOST RED, BATTERY REVERSE RED.
ANUNCIATION	POTENTIAL FREE CONTACTS FOR BC ON/OFF
DIMENSIONS LBH mm	265120115 mm
ENCLOSURE	POWDER COATED ALUMINIUM
